Automatic Large Onsite Sodium Hypochlorite Generation 1 - 20 Kg / h

Automatic Large Onsite Sodium Hypochlorite Generation 1 - 20 Kg / h

    • Automatic Large Onsite Sodium Hypochlorite Generation 1 - 20 Kg / h
    • Automatic Large Onsite Sodium Hypochlorite Generation 1 - 20 Kg / h
    • Automatic Large Onsite Sodium Hypochlorite Generation 1 - 20 Kg / h
  • Automatic Large Onsite Sodium Hypochlorite Generation 1 - 20 Kg / h

    Product Details:

    Place of Origin: CHINA
    Brand Name: CNJS
    Certification: ISO9001
    Model Number: CNJY-L

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: NEGOTIATION
    Packaging Details: wooden case
    Delivery Time: 20-45 wok days
    Payment Terms: L/C, T/T, Western Union
    Detailed Product Description
    Available Chlorine: 7.0-9.0g/L Power Input: 380V, 50Hz
    Inlet Water Temperature: 5-27鈩 Inlet Water Pressure: 0.2-0.4Mpa
    Salt Consumption: 3.5kg/kg Cl2 Water Consumption: 125L/kg Cl2
    Electrolytic Liquid: 2.5~3% Weak Brine Content Available CL: 聣8000ppm
    Rated Current: Determined According To The Selected Product Model



    Automatic Large Onsite Sodium Hypochlorite Generation 1 - 20 Kg / h





    Product introduction:



    Generation principle:

    The revolutionary CNJY-L series sodium hypochlorite generator is a newly and for on-site product of NaClO equipment and use for all kinds of needed NaClO disinfected. Its working principle is :the sodium chloride solution under the certain voltage effect of the cell, a series of electrochemical reaction within the cell and the resulting solution is the NaClO solution. The main process can be simplified as follows:



    NaCl+H2O+DC→NaClO+H2





    The electrode reaction:

    anode:2Cl--2e→Cl2

    cathode:2H++2e→H2

    solution:2NaOH+Cl2→NaCl+NaClO+H2O





     Product system:



    Brine preparation part: Including water softener, dissolving tank, salt feeder, mixing

    system , etc.



    Automatic Large Onsite Sodium Hypochlorite Generation 1 - 20 Kg / h

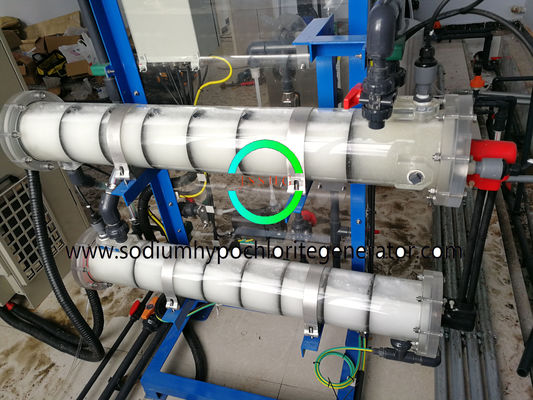

    Generation Part: Including Generator,Heated Exchange,Rectifier,Control Cabinet , etc.



    Automatic Large Onsite Sodium Hypochlorite Generation 1 - 20 Kg / h

     Storage Tank Part: Including NaClO tank, blower fan, Level gauge, Hydrogen gas detector, etc



    Automatic Large Onsite Sodium Hypochlorite Generation 1 - 20 Kg / h



    Delivery Part: dosing Pump, flow meter, residual chlorine detector, etc





    Automatic Large Onsite Sodium Hypochlorite Generation 1 - 20 Kg / h





    Why choose on-site sodium hypochlorite generator

    SAFETY :

    Salt, Water and Electricity as raw materials, no need for transportation of dangerous chemicals;

    ENERGY-SAVING :

    High current efficiency , few by products.

    ECONOMY :

    Integrated and compact design , little space , low capital cost.

    Convenient :

    Automatic operation , no surveillance .



    Details :

    Automatic Large Onsite Sodium Hypochlorite Generation 1 - 20 Kg / h

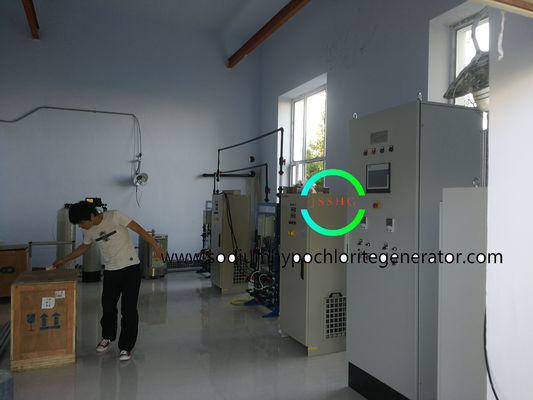

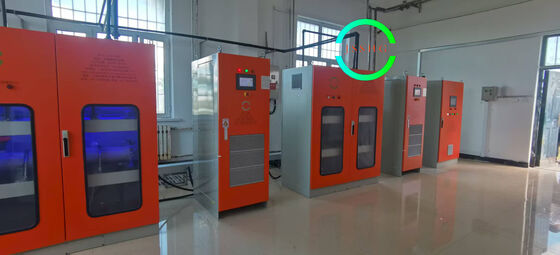

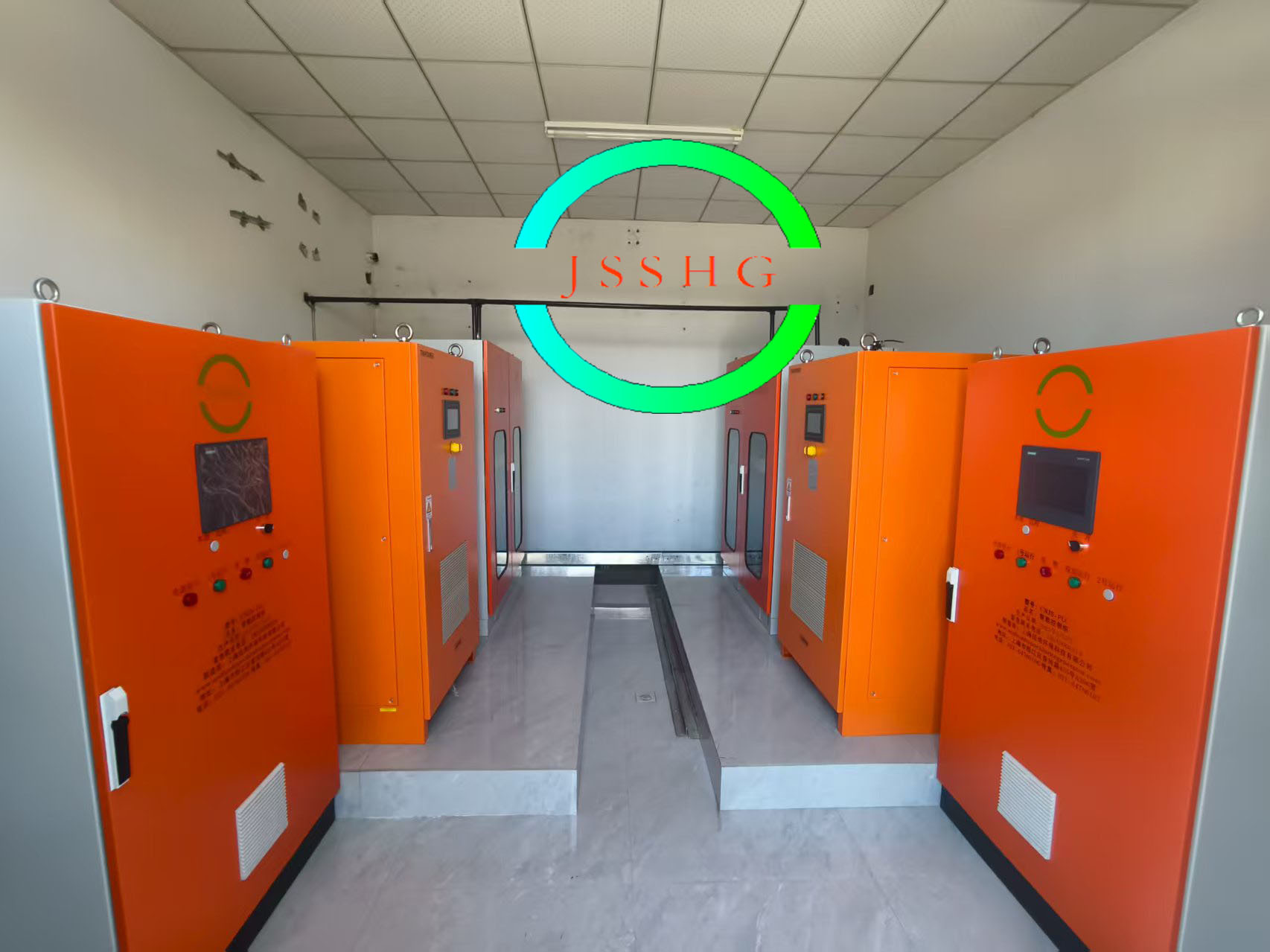

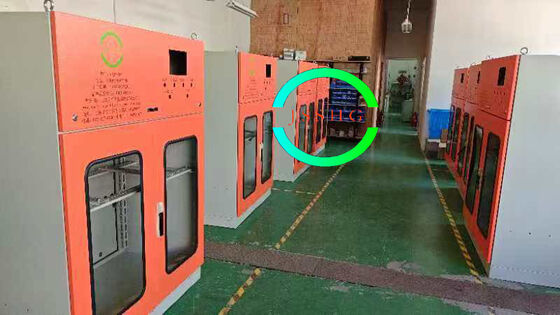

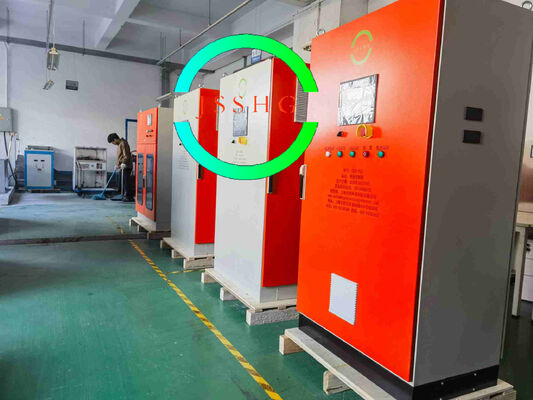

    work shop :



    Automatic Large Onsite Sodium Hypochlorite Generation 1 - 20 Kg / h
