    Product Details:

    Place of Origin: CHINA
    Brand Name: CNJS
    Certification: ISO9001
    Model Number: CNJS-SW3000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: NEGOTIATION
    Packaging Details: wooden case
    Delivery Time: 35 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 5 SETS PER MONTH
    Detailed Product Description
    Design Pressure: 0.45 Mpa Electrode Life: 鈮5 Years
    Inlet Water Pressure: 0.2-0.4 Mpa Acid Cleaning Period: 1-12 Months
    DC Power Consumption: 3.7 K W H / Kg Cl2



    3 kg / h Modular System Hypochlorite Generation From Seawater Electrolysis





    Product introduction :



    Technical parameters:

    Type

    Available

    Cl2

    (Kg/h)

    Flow

    water (m3/h)

    AC

    consumption

    (kw )

    Av Cl2

    Concentration

    (ppm)

    Treatment of Cooling Water

    Dosing

    Rate

    (ppm)

    Cooling Water Flow

     (m3/h)

    CNJS-SW-3000

    3

    5

    12.3

    600

    1

    3,000





    Generation principle :

    CNJS-SW series sodium hypochlorite generator is a newly and work through electrolysis of salt water , the whole system consists of electrolysis electrode assembly , rectification power and automatic control system , dissolving system , filtering system , ratio device and so on . The salt water is electrolyzed into sodium hypochlorite . Sodium hypochlorite is a kind of disinfection which can gets strong antivirus and bleach power

      the sodium chloride solution under the certain voltage effect of the cell, a series of electrochemical reaction within the cell and the resulting solution is the NaClO solution. The main process can be simplified as follows:





    3 kg / h Modular System Hypochlorite Generation From Seawater Electrolysis





    • Application  :
    • Extensive use of seawater as cooling water such as: petroleum chemical plants, steel plants, thermal power stations and other coastal and marine plants.
    • Seawater as raw material can simply generate the required amount of sodium hypochlorite. Water electrolysis device can applied in many areas. And also in the field of water treatment oxidation and disinfection by sodium hypochlorite.

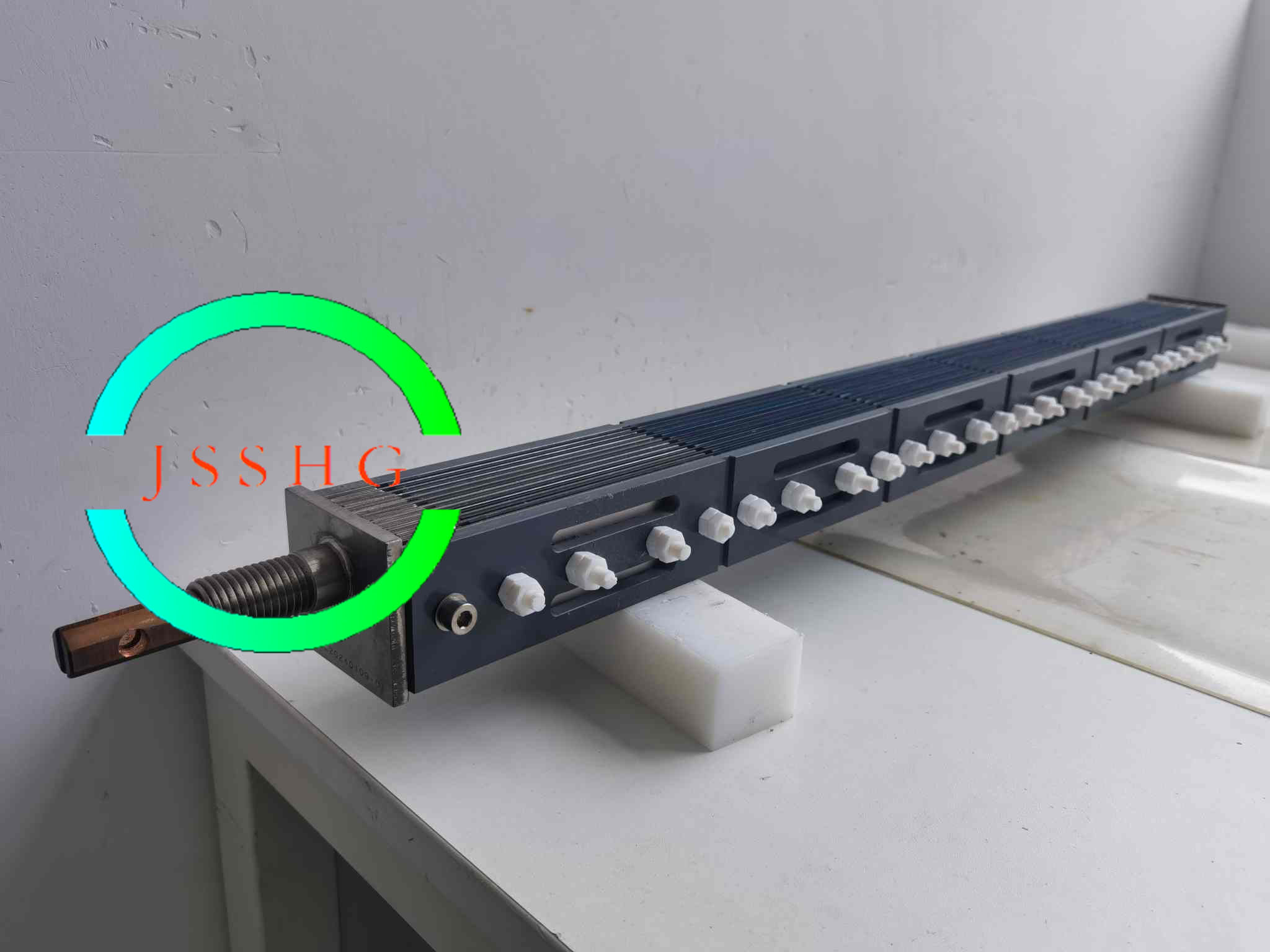

    The characteristics of the electrolytic cell:

    Bipolar銉籺ransparent electrolytic cell



    3 kg / h Modular System Hypochlorite Generation From Seawater Electrolysis



    Cathode and anode comprehensive visualization

    Comprehensive protection of electrode

    Titanium copper composites conduction

    Less resistance

    Electrodes arranged in series

    Compact and lightweight

    Horizontal cylindrical cell

    Compact and simple





    Corrosion-resistant material

    3 kg / h Modular System Hypochlorite Generation From Seawater Electrolysis

    Anode

    2 mm titanium plate + nano-scale coating

    Corrosion-resistant, high performance, long service life (> 5 years)

    Cathode

    2 mm titanium plate

    Corrosion-resistant

    Frame body

    PVC



    Corrosion-resistant PVC material

    Frame cover

    PVC

    Power supply terminal

    Titanium

    Titanium and copper composite material

    Corrosion resistant





     Long-term stability





    Electrodes arranged in series

    The electrolytic cell liquid flowing smoothly

    銉籔revent scaling

    銉籗upply new

    liquid

      Maintain the

      coating state

    銆Ensure

     electrolysis condition

    Long-term stablility

    Frame diameter moderate

    Prevent one-way flow and make sure uniform flow between electrodes

    Moderate cross-sectional shapes

    liquid supply process

    Supply new liquid to the electrodes

    Gas path

    Supply new liquid to the

    electrodes

    Cycle way

    To make sure a proper flow rate in the cell

    Fewer gasket

    Operation without leakage

    銉籄void failures

         ↓

    Long-term

    stability

    Electrode flange one-piece

    Pipe pressure ability strong, reduce leakage





    Good maintainability



    3 kg / h Modular System Hypochlorite Generation From Seawater Electrolysis



    Cell Weight

    30-80kg

    Do not need heavy machine when repair and replaceable electrode on-site

    Electrode shape

    Demountable

    Easy to loading and unloading  the electrode

    Frame

    Outer material is alumina

    Long as new





    Easily to clean the electrode



    3 kg / h Modular System Hypochlorite Generation From Seawater Electrolysis

    Acid cleaning device

    Portable acid cleaning device

    Without removing the

    cell and easy to cleaning the electrode

    Clean the nozzle

    Set the cleaning nozzle at the entrance of electrolytic cell



    Other advantages and features:

    1.CNJS use the seawater as the raw material, make the required amount of sodium hypochlorite.

    2.CNJS on –site no need for storage or transportation of dangerous chemicals.

    3.Recently by adding medicine to prevent adhere of marine organisms, and the economy effect is not well, thus attracting more attention on seawater electrolysis.





    Compared with the previous forms of disinfection:





    3 kg / h Modular System Hypochlorite Generation From Seawater Electrolysis

        Measure(before)

    Inject of chlorine or commercial

    sodium hypochlorite





    Problem



    Liquid chlorine :suffered the risk of leakage

                                                                 3 kg / h Modular System Hypochlorite Generation From Seawater Electrolysis                 Using CNJS seawater equipment         Commercial sodium hypochlorite :                                                   can solve all the problems                    Long-term storage, the concentration will decline





    Acid cleaning effect



    Keep the current efficiency:

    After removing the dirt from the adhere of the electrode, can keep the electrolyzing body performance well and high efficiency to produce sodium hypochlorite.

    By removing dirt to prevent the consumption of anodic coating:

    By removing dirt prevents the base composition of the anode coating and anode material consumption and damage, extended electrode life.

    Energy-saving operation:

           After removal of dirt and impurities, the voltage decreases, reducing power consumption.
