High Security And Low Energy Consumption Integrated Seawater Electrolysis

High Security And Low Energy Consumption Integrated Seawater Electrolysis

    • High Security And Low Energy Consumption Integrated Seawater Electrolysis
    • High Security And Low Energy Consumption Integrated Seawater Electrolysis
    • High Security And Low Energy Consumption Integrated Seawater Electrolysis
    • High Security And Low Energy Consumption Integrated Seawater Electrolysis
  • High Security And Low Energy Consumption Integrated Seawater Electrolysis

    Product Details:

    Place of Origin: CHINA
    Brand Name: CNJS
    Certification: ISO9001
    Model Number: CNJS-SW10000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: NEGOTIATION
    Packaging Details: wooden case
    Delivery Time: 35 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 5 SETS PER MONTH
    Detailed Product Description
    Design Pressure: 0.45 Mpa Electrode Life: 鈮5 Years
    Inlet Water Pressure: 0.2-0.4 Mpa Acid Cleaning Period: 1-12 Months
    DC Power Consumption: 3.7 K W H / Kg Cl2


    High Security And Low Energy Consumption Integrated Seawater Electrolysis


    Product introduction :

    Technical parameters:

    Type

    Available
    Cl2
    (Kg/h)

    Flow
    water (m3/h)

    AC
    consumption
    (kw )

    Av Cl2
    Concentration
    (ppm)

    Treatment of Cooling Water

    Dosing
    Rate
    (ppm)

    Cooling Water Flow
     (m3/h)

    CNJS-SW-10000

    10

    5

    41.1

    2000

    1

    10,000



    Generation principle :

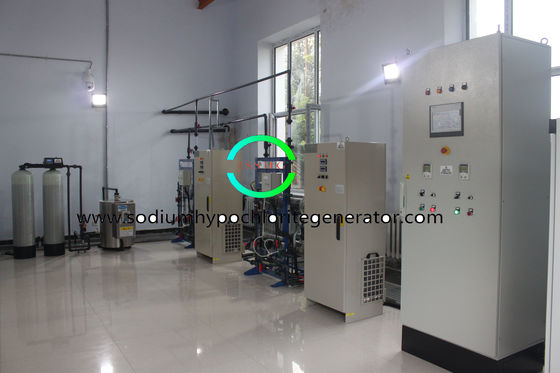

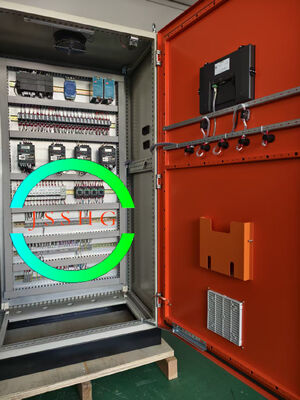

    CNJS-SW series sodium hypochlorite generator is a newly and work through electrolysis of salt water , the whole system consists of electrolysis electrode assembly , rectification power and automatic control system , dissolving system , filtering system , ratio device and so on . The salt water is electrolyzed into sodium hypochlorite . Sodium hypochlorite is a kind of disinfection which can gets strong antivirus and bleach power
      the sodium chloride solution under the certain voltage effect of the cell, a series of electrochemical reaction within the cell and the resulting solution is the NaClO solution.


    High Security And Low Energy Consumption Integrated Seawater Electrolysis



    • Application  :
    • Extensive use of seawater as cooling water such as: petroleum chemical plants, steel plants, thermal power stations and other coastal and marine plants.
    • Seawater as raw material can simply generate the required amount of sodium hypochlorite. Water electrolysis device can applied in many areas. And also in the field of water treatment oxidation and disinfection by sodium hypochlorite.

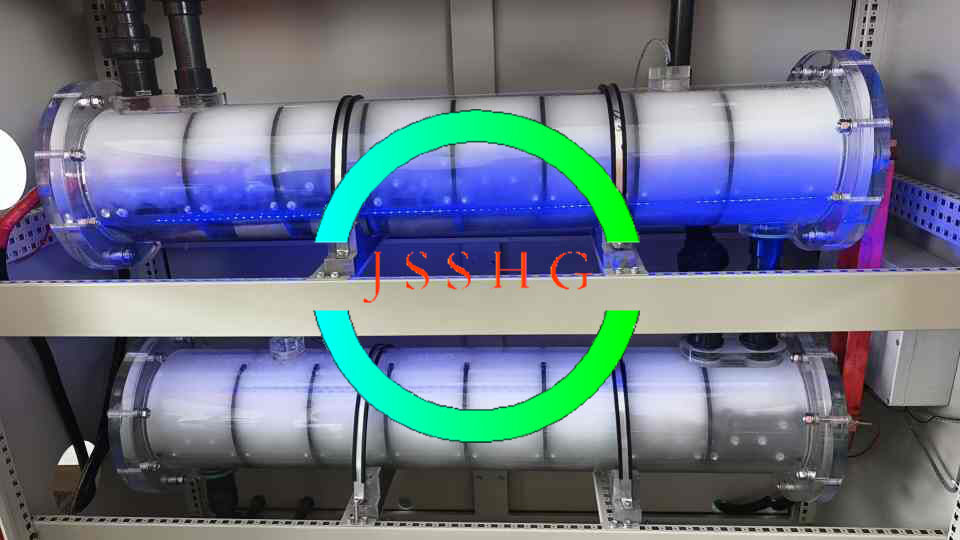

    The characteristics of the electrolytic cell:
    Bipolar銉籺ransparent electrolytic cell

    High Security And Low Energy Consumption Integrated Seawater Electrolysis


    Cathode and anode comprehensive visualization

    Comprehensive protection of electrode

    Electrodes arranged in series

    Compact and lightweight

    Demountable electrode

    Easily replaced

    Horizontal cylindrical cell

    Compact and simple



    Corrosion-resistant material
    High Security And Low Energy Consumption Integrated Seawater Electrolysis

    Anode

    2 mm titanium plate + nano-scale coating

    Corrosion-resistant, high performance, long service life (> 5 years)

    Frame body

    PVC


    Corrosion-resistant PVC material

    Frame cover

    PVC

    Gasket

    PVDF

    Replace in the same period with the electrode

    Power supply terminal

    Titanium
    Titanium and copper composite material

    Corrosion resistant



     Long-term stability



    Electrodes arranged in series

    The electrolytic cell liquid flowing smoothly

    銉籔revent scaling
    銉籗upply new
    liquid
      Maintain the
      coating state
    銆Ensure
     electrolysis condition

    Long-term stablility

    Frame diameter moderate

    Prevent one-way flow and make sure uniform flow between electrodes

    Moderate cross-sectional shapes

    liquid supply process

    Supply new liquid to the electrodes

    Gas path

    Supply new liquid to the

    electrodes

    Cycle way

    To make sure a proper flow rate in the cell

    High corrosion resistance
    High –performance
    Long electrode life

    Maintain long-term stable electrolysis
    performance

    銉籄void failures
         ↓
    Long-term
    stability

    Fewer gasket

    Operation without leakage

    Electrode flange one-piece

    Pipe pressure ability strong, reduce leakage



    Good maintainability

    High Security And Low Energy Consumption Integrated Seawater Electrolysis


    Cell Weight

    30-80kg

    Do not need heavy machine when repair and replaceable electrode on-site

    Electrode shape

    Demountable

    Easy to loading and unloading  the electrode

    Accessories specifications

    Standard Parts

    Procurement convenience

    Frame

    Outer material is alumina

    Long as new



    Easily to clean the electrode

    High Security And Low Energy Consumption Integrated Seawater Electrolysis

    Acid cleaning device

    Portable acid cleaning device

    Without removing the

    cell and easy to cleaning the electrode

    Clean the nozzle

    Set the cleaning nozzle at the entrance of electrolytic cell



    Other advantages and features:

    1. CNJS use the seawater as the raw material, make the required amount of sodium hypochlorite.
    2. CNJS on –site no need for storage or transportation of dangerous chemicals.
    3. Recently by adding medicine to prevent adhere of marine organisms, and the economy effect is not well, thus attracting more attention on seawater electrolysis.


    Compared with the previous forms of disinfection:


    High Security And Low Energy Consumption Integrated Seawater Electrolysis


    Acid cleaning effect

    Keep the current efficiency:

    After removing the dirt from the adhere of the electrode, can keep the electrolyzing body performance well and high efficiency to produce sodium hypochlorite.
    By removing dirt to prevent the consumption of anodic coating:

    By removing dirt prevents the base composition of the anode coating and anode material consumption and damage, extended electrode life.
    Energy-saving operation:
           After removal of dirt and impurities, the voltage decreases, reducing power consumption.
