    Product Details:

    Place of Origin: CHINA
    Brand Name: CNJS
    Certification: ISO9001
    Model Number: CNJS-SW1000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: NEGOTIATION
    Packaging Details: wooden case
    Delivery Time: 35 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 5 SETS PER MONTH
    Detailed Product Description
    Available Chlorine:: 2000 -3000mg/L Design Pressure: 0.45 Mpa
    Electrode Life: 鈮5 Years Inlet Water Pressure: 0.2-0.4 Mpa


    Bipolar Titanium Hypochlorite Generation From Seawater with Iridium Coating


    Product introduction :

    Technical parameters:

    Type

    Available
    Cl2
    (Kg/h)

    Flow
    water (m3/h)

    AC
    consumption
    (kw )

    Av Cl2
    Concentration
    (ppm)

    Treatment of Cooling Water

    Dosing
    Rate
    (ppm)

    Cooling Water Flow
     (m3/h)

    CNJS-SW-1000

    1

    5

    4.1

    200

    1

    1000



    Generation principle :
    CNJS-SW series sodium hypochlorite generator is a newly and work through electrolysis of salt water , the whole system consists of electrolysis electrode assembly , rectification power and automatic control system , dissolving system , filtering system , ratio device and so on . The salt water is electrolyzed into sodium hypochlorite . Sodium hypochlorite is a kind of disinfection which can gets strong antivirus and bleach power
     The main process can be simplified as follows:


    Bipolar Titanium Hypochlorite Generation From Seawater with Iridium Coating



    • Application  :
    • Extensive use of seawater as cooling water such as: petroleum chemical plants, steel plants, thermal power stations and other coastal and marine plants.
    • Seawater as raw material can simply generate the required amount of sodium hypochlorite. Water electrolysis device can applied in many areas. And also in the field of water treatment oxidation and disinfection by sodium hypochlorite.

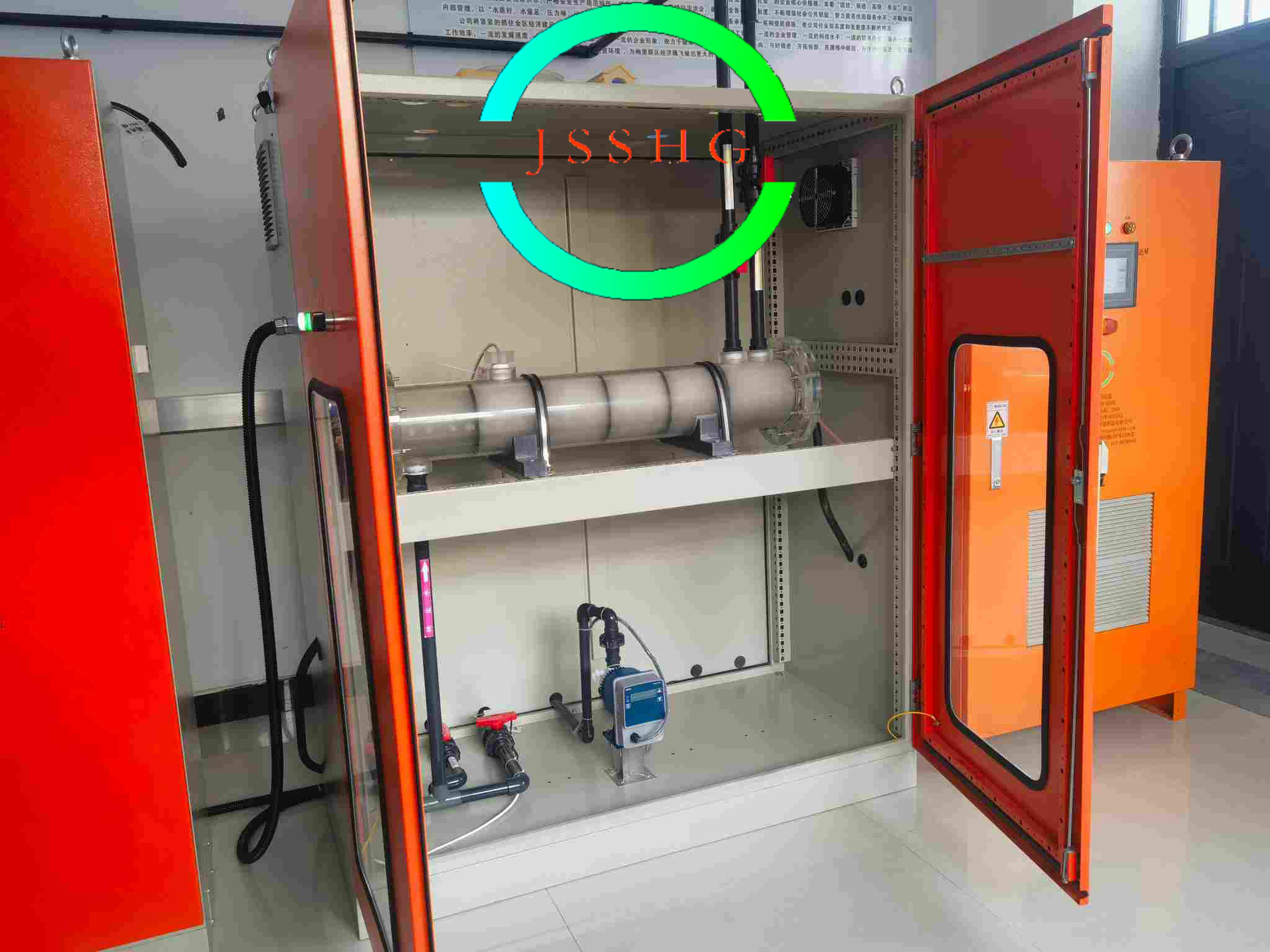

    The characteristics of the electrolytic cell:
    Bipolar銉籺ransparent electrolytic cell




    Cathode and anode comprehensive visualization

    Comprehensive protection of electrode

    Demountable electrode

    Easily replaced

    Horizontal cylindrical cell

    Compact and simple



    Corrosion-resistant material
    Bipolar Titanium Hypochlorite Generation From Seawater with Iridium Coating

    Anode

    2 mm titanium plate + nano-scale coating

    Corrosion-resistant, high performance, long service life (> 5 years)

    Cathode

    2 mm titanium plate

    Corrosion-resistant

    Gasket

    PVDF

    Replace in the same period with the electrode

    Power supply terminal

    Titanium
    Titanium and copper composite material

    Corrosion resistant



     Long-term stability



    Electrodes arranged in series

    The electrolytic cell liquid flowing smoothly

    銉籔revent scaling
    銉籗upply new
    liquid
      Maintain the
      coating state
    銆Ensure
     electrolysis condition

    Long-term stablility

    Frame diameter moderate

    Prevent one-way flow and make sure uniform flow between electrodes

    Moderate cross-sectional shapes

    liquid supply process

    Supply new liquid to the electrodes

    Gas path

    Supply new liquid to the
    electrodes

    Cycle way

    To make sure a proper flow rate in the cell

    High corrosion resistance
    High –performance
    Long electrode life

    Maintain long-term stable electrolysis
    performance

    銉籄void failures
         ↓
    Long-term
    stability

    Fewer gasket

    Operation without leakage

    Electrode flange one-piece

    Pipe pressure ability strong, reduce leakage



    Good maintainability

    Bipolar Titanium Hypochlorite Generation From Seawater with Iridium Coating


    Cell Weight

    30-80kg

    Do not need heavy machine when repair and replaceable electrode on-site

    Accessories specifications

    Standard Parts

    Procurement convenience

    Frame

    Outer material is alumina

    Long as new



    Easily to clean the electrode

    Bipolar Titanium Hypochlorite Generation From Seawater with Iridium Coating

    Acid cleaning device

    Portable acid cleaning device

    Without removing the

    cell and easy to cleaning the electrode

    Clean the nozzle

    Set the cleaning nozzle at the entrance of electrolytic cell



    Other advantages and features:

    1.CNJS use the seawater as the raw material, make the required amount of sodium hypochlorite.

    2.CNJS on –site no need for storage or transportation of dangerous chemicals.

    3.Recently by adding medicine to prevent adhere of marine organisms, and the economy effect is not well, thus attracting more attention on seawater electrolysis.


    Compared with the previous forms of disinfection:


    Bipolar Titanium Hypochlorite Generation From Seawater with Iridium Coating


    Measure(before)

    Inject of chlorine or commercial

    sodium hypochlorite





    Problem



    Liquid chlorine :

    suffered the risk of leakage

                                                                           Bipolar Titanium Hypochlorite Generation From Seawater with Iridium Coating    Using CNJS seawater equipment       Commercial sodium hypochlorite :                                          can solve all the problems                 Long-term storage, the concentration will decline
