    Product Details:

    Place of Origin: CHINA
    Brand Name: CNJS
    Certification: ISO9001
    Model Number: CNJS-N-20000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: NEGOTIATION
    Packaging Details: wooden case
    Delivery Time: 20-45 work day
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 20 sets per month
    Detailed Product Description



    Integrated And Longlife 0.8% Sodium Hypochlorite Production Electrolysis





    Principle:



    CNJS-N series sodium hypochlorite generator is a newly and work through electrolysis of salt water , the whole system consists of electrolysis electrode assembly , rectification power and automatic control system , dissolving system , filtering system , ratio device and so on . The salt water is electrolyzed into sodium hypochlorite . Sodium hypochlorite is a kind of disinfection which can gets strong antivirus and bleach power :

                                  Integrated And Longlife 0.8% Sodium Hypochlorite Production Electrolysis








    Technical parameters:



    Type

    Power(V/Hz)

    concentration of liquid(mg/l)

    available chlorine (Kg/h)

    Flow (m3/h)

    Salt consumption (kg/d)

    Water consumption (m3/d)

    Power consumption   (kw)

    Size(m)      (l×w×h)

    CNJS-N20000

    380V/50Hz

    7-9

    20

    2.5

    1680

    60

    65

    1480*960*

    1980





    Product features:



    > Available chlorine: 7.0-9.0g/L ;        > Power input: 380V, 50Hz ;

    > Inlet water temperature : 5-27鈩冿紱    > Inlet water pressure: 0.2-0.4Mpa锛

    > Salt consumption: 3.5kg/kg Cl2 ;       > Water consumption: 125L/kg Cl2锛

    > Electrolytic liquid: 2.5~3% weak brine锛 > Content available CL: ≥8000ppm锛

    > Rated current: Determined according to the selected product model;





    Work flow chart :





                            Integrated And Longlife 0.8% Sodium Hypochlorite Production Electrolysis







    Automatic sodium hypochlorite generator system fully automatic production, contains the system



    A, Automatic dissolving salt tank :Including salt tank , liquid level control , dissolving salt pump , electric valves , piping and other components which could automatic transmission salt , dissolving salt , saturated brine

    B, Saturated brine filter :Including stainless steel two precision filter ,primary filtering accuracy 50um, secondary filtration precision 5um, use PP filter , the filter can be easily replaced, ensure clean brine ;

    C, Dilute brine tank :The saturated brine and production water has been diluted with 2.5 % weak brine water , for the power solutions

    D, Sodium hypochlorite generator host machine :Including electrolytic cell , electrolysis power , intelligent control center PLC , the control element, man-machine interface , PC communication module, the operator panel, the host stand, electric valves, electrical power distribution system

    E, Sodium hypochlorite solution storage tank :including hydrogen storage tank , exhaust equipment

    F, Automatic dosing and on-line monitoring system: including the inverter , corrosion metering dosing pump , online residual chlorine monitor , and the closed-loop control of chlorine

    G, Online instrument series : Production water pressure monitoring , dilute brine online salinity monitoring , temperature controller , flammable gas monitoring sensor , these monitoring instruments are all included alarm signal output



    Advantage on CNJY Products :



     鈼 The only material needed are salt and water . Salt can be safe and convenient transportation, storage, without any volatile and other toxic, no focus on chlorine needed hazards monitoring requirements on terror



    鈼 DC low voltage electrolysis, no high pressure, steam, heat and other hazards

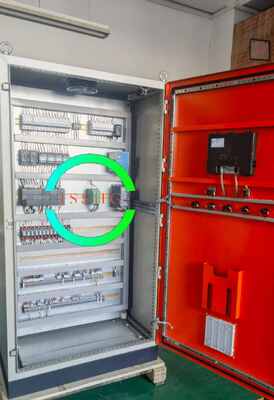

    details:

                                                       Integrated And Longlife 0.8% Sodium Hypochlorite Production Electrolysis

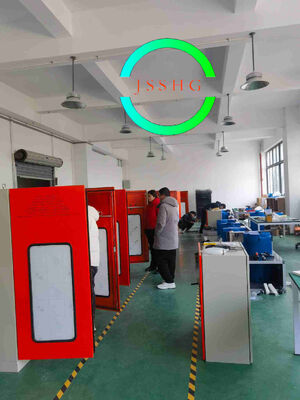

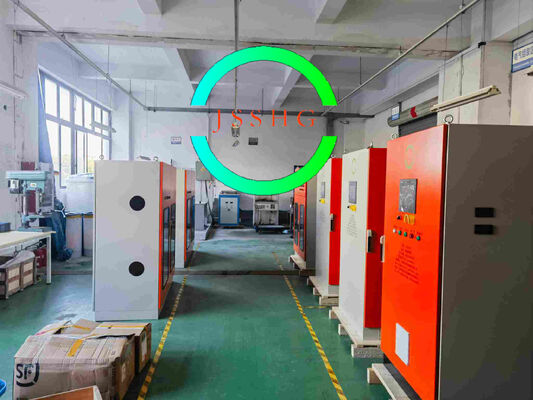

    Workshop :

    Integrated And Longlife 0.8% Sodium Hypochlorite Production Electrolysis
