    Product Details:

    Place of Origin: CHINA
    Brand Name: CNJS
    Certification: ISO9001
    Model Number: CNJS-L-5000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: NEGOTIATION
    Packaging Details: wooden case
    Delivery Time: 20-45 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 20 SETS PER MONTH
    Detailed Product Description
    Available Chlorine: 0.8 % Inlet Water Temperature: 5-27鈩
    Inlet Water Pressure: 0.2-0.4Mpa Electrolytic Liquid: 2.5~3% Weak Brine
    Brand: CNJS



    Tandem Bipolar Sodium Hypochlorite Generation System High Throughput





    Principle:



    CNJS-L series sodium hypochlorite generator is a newly and work through electrolysis of salt water , the whole system consists of electrolysis electrode assembly , rectification power and automatic control system , dissolving system , filtering system , ratio device and so on . The salt water is electrolyzed into sodium hypochlorite . Sodium hypochlorite is a kind of disinfection which can gets strong antivirus and bleach power.  Its working principle is:                                                                            Tandem Bipolar Sodium Hypochlorite Generation System High Throughput
    Technical parameters:



    Type

    Power(V/Hz)

    concentration of liquid(mg/l)

    available chlorine (Kg/h)

    Flow (m3/h)

    Salt consumption (kg/d)

    Water consumption (m3/d)

    Power consumption   (kw)

    Size(m)      (l×w×h)

    CNJS-L5000

    380V/50Hz

    7-9

    5

    0.5

    336

    12

    20

    1200*860*

    1950







    Work flow chart :

    Tandem Bipolar Sodium Hypochlorite Generation System High Throughput



    Product system:



    A,Automatic dissolving salt tank :Including salt tank , liquid level control , dissolving salt pump , electric valves , piping and other components which could automatic transmission salt , dissolving salt , saturated brine

    B,Saturated brine filter :Including stainless steel two precision filter ,primary filtering accuracy 50um, secondary filtration precision 5um, use PP filter , the filter can be easily replaced, ensure clean brine ;

    C,Dilute brine tank :The saturated brine and production water has been diluted with 2.5 % weak brine water , for the power solutions

    D,Sodium hypochlorite generator host machine :Including electrolytic cell , electrolysis power , intelligent control center PLC , the control element, man-machine interface , PC communication module, the operator panel, the host stand, electric valves, electrical power distribution system

    E,Sodium hypochlorite solution storage tank :including hydrogen storage tank , exhaust equipment

    F,Automatic dosing and on-line monitoring system: including the inverter , corrosion metering dosing pump , online residual chlorine monitor , and the closed-loop control of chlorine

    G,Online instrument series : Production water pressure monitoring , dilute brine online salinity monitoring , temperature controller , flammable gas monitoring sensor , these monitoring instruments are all included alarm signal output





    Advantage of on-site sodium hypochlorite generator



    SAFETY:   Material safety: Salt, Water and Electricity as raw materials, no need for transportation of dangerous chemicals;
    Process safety: No risk of chlorine leakage and reactor explosion, safety for operator;
    Product safety: Product-0.8% NaCIO solution, has the advantage of stable and safety, cost effective in operation and no attenuation in storage.
    ENERGY-SAVING:   Make use of electricity in the off-peak period to generate the NaCIO solution.
    ENVIRONMENTAL
     PROTECTION:
      Avoid of usage, transportation of dangerous chemical material.High current efficiency ,few by-product, safe H2 ventilation.
    ECONOMY:   JIAYU equipment can largely reduce the operation cost compared to the bulk hypochlorite

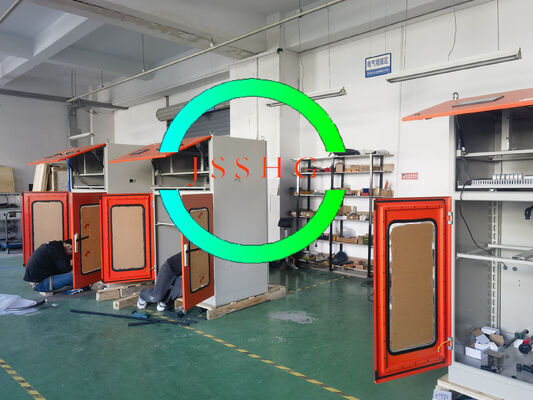

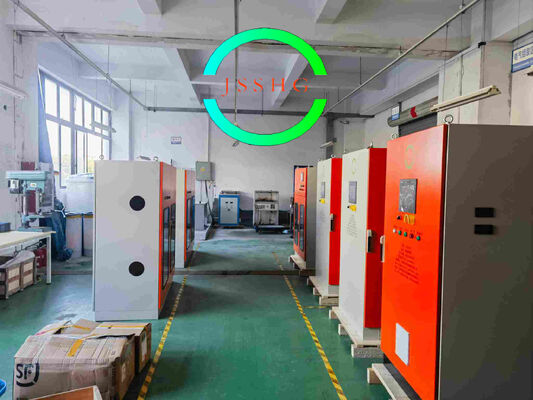

    workshop :

    Tandem Bipolar Sodium Hypochlorite Generation System High Throughput
