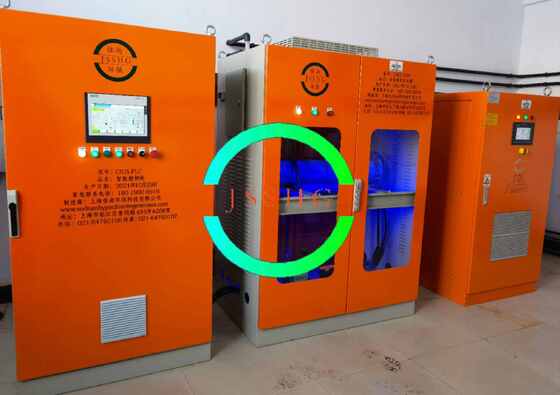

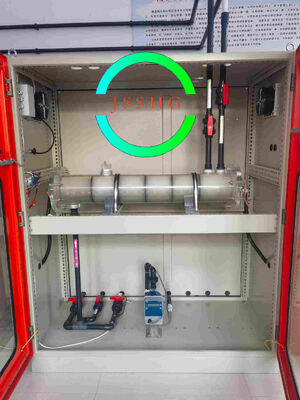

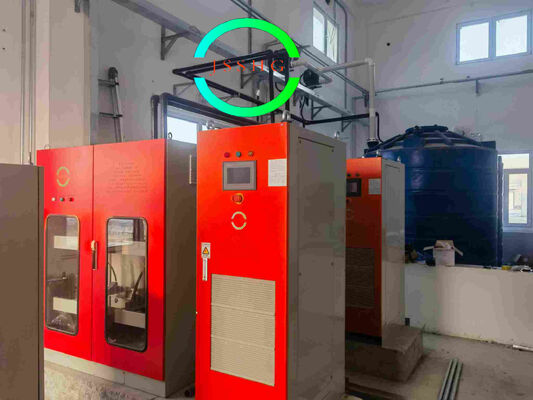

12 % High Concentration Sodium Hypochlorite Production Automatic Chlorine Generator

12 % High Concentration Sodium Hypochlorite Production Automatic Chlorine Generator

    • 12 % High Concentration Sodium Hypochlorite Production  Automatic Chlorine Generator
    • 12 % High Concentration Sodium Hypochlorite Production  Automatic Chlorine Generator
  • 12 % High Concentration Sodium Hypochlorite Production  Automatic Chlorine Generator

    Product Details:

    Place of Origin: CHINA
    Brand Name: CNJS
    Certification: ISO9001
    Model Number: CNJS-HL6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: NEGOTIATION
    Packaging Details: wooden case
    Delivery Time: 7-30 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 5 SETS /month
    Detailed Product Description
    Available Chlorine: 12 % Power Input: 380V, 50Hz
    Inlet Water Temperature: 5-27鈩 Inlet Water Pressure: 0.2-0.4Mpa
    Salt Consumption: 4 Kg/kg Cl2 Water Consumption: 125 L/kg Cl2
    Electrolytic Liquid: 2.5~3% Weak Brine



    12 % High Concentration Sodium Hypochlorite Production  Automatic Chlorine Generator





    Product introduction:



    CNJS - HL6 high concentration of sodium hypochlorite generator



         CNJS-HL Series modular generation system is safe, convenient, economical, low cost, efficient chlorine gas,, sodium hypochlorite.

          General System Configuration : Available chlorine production is 1000-2000 kg per day, that is 5-10 kg per hour. Extraordinary system configuration : According to user needs , the combination of modules expanding into larger modules , the production capacity designed according to user requirements, up to 5,000 tons a year , 10,000 tons, 100,000 tons or even more .

    Eliminating the risk of leakage due to chlorine and bulk sodium hypochlorite caused , also avoid use of hazardous chemicals as raw materials of chemical disinfection equipment and the potential risks ; and to get rid of the hassle associated with suppliers brought . For most need disinfection and oxidation businesses and regions is an ideal choice .



    Characteristics and advantages :



    •  Instead of liquid chlorine , exclude the leak of poisoning hazards from the liquid chlorine

    •  Production of 10-15 % concentration of chlorine

    •  Production of 5-12% concentration of sodium hypochlorite liquid
    •  Simple operation to quiet
    •  Adapt to the remote monitoring of PLC system
    •  Components are mature and reliable, in line with national standards

    •  After warranty , life-long maintenance , timely and thoughtful service



                                                             CNJS-HL6 Series



    Day( Hour )production

    Operation parameters (cost /Kg. Available chlorine)

    Chlorine ( kg / d )

    480 - 720

    Food grade salt(kg)

    1.65

    Chlorine ( kg / h )

    20 - 30

    Water(L)

    8

    15%( L / h )

    3200 - 4600

    Power(AC KWh)

    3.9

    NaClO 10 - 12 %( T / d )(converted from chlorine)

    4 - 6

    Hydrogen content  ( % Ventilation rate )

    Less than 1 %( Safe )



    Characteristics of the equipment :



     The assembly structure
    •  Alumina metal bracket
    •  Stainless steel fasteners
    •  Corrosion resistance of the valve and reliable seal
    •  Glue and soldering of the plastic pipe



     Electrolytic cell
    •  High-tech and new membrane coated titanium electrode



    Rectifier power supply
    •  Precision of the high frequency DC power supply
    •  Keep constant current steady DC output



    Automatic control

    PLC programming control , remote monitoring



    Water quality regulation

    Production water, salt water purification treatment
