Multi Function Electrolysis Salt Water Sodium Hypochlorite Generator Machine 20 KG

Multi Function Electrolysis Salt Water Sodium Hypochlorite Generator Machine 20 KG

    • Multi Function Electrolysis Salt Water Sodium Hypochlorite Generator Machine 20 KG
    • Multi Function Electrolysis Salt Water Sodium Hypochlorite Generator Machine 20 KG
    • Multi Function Electrolysis Salt Water Sodium Hypochlorite Generator Machine 20 KG
  • Multi Function Electrolysis Salt Water Sodium Hypochlorite Generator Machine 20 KG

    Product Details:

    Place of Origin: CHINA
    Brand Name: CNJS
    Certification: ISO9001
    Model Number: CNJS-M20000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: NEGOTIATION
    Packaging Details: wooden case
    Delivery Time: 20-45 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 20 sets per month
    Detailed Product Description



    Multi Function Electrolysis Salt Water Sodium Hypochlorite Generator Machine 20KG





    Principle:



    CNJS-L series sodium hypochlorite generator is a newly and work through electrolysis of salt water , the whole system consists of electrolysis electrode assembly , rectification power and automatic control system , dissolving system , filtering system , ratio device and so on . The salt water is electrolyzed into sodium hypochlorite . Sodium hypochlorite is a kind of disinfection which can gets strong antivirus and bleach power.  Its working principle is:



      the sodium chloride solution under the certain voltage effect of the cell, a series of electrochemical reaction within the cell and the resulting solution is the NaClO solution. The main process can be simplified as follows:

                                                                                Electrode reaction:



    anode:2Cl--2e→Cl2



    cathode:2H++2e→H2



    Solution:2NaOH+Cl2→NaCl+NaClO+H2O




    Technical parameters:





    Type : CNJS-M 20000



    Power(V/Hz) :380V/50Hz



    available chlorine (Kg/h) :20



    concentration of liquid(mg/l) :7-9



    Flow ( m3/h) :2.5


    Salt consumption ( kg /h ) :1680


    Water consumption (m3/d) :60


    Power consumption   (kw): 65



    Size(m)      (l×w×h) : 1760*860*1950







    Work flow chart :

    Multi Function Electrolysis Salt Water Sodium Hypochlorite Generator Machine 20 KG



    Automatic sodium hypochlorite generator system fully automatic production, contains the system





    Automatic dissolving salt tank :Including salt tank , liquid level control , dissolving salt pump , electric valves , piping and other components which could automatic transmission salt , dissolving salt , saturated brine





    Saturated brine filter :Including stainless steel two precision filter ,primary filtering accuracy 50um, secondary filtration precision 5um, use PP filter , the filter can be easily replaced, ensure clean brine ;





    Dilute brine tank :The saturated brine and production water has been diluted with 2.5 % weak brine water , for the power solutions

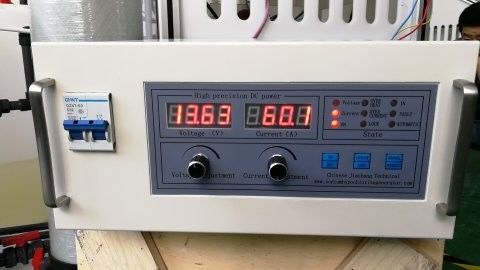

    Sodium hypochlorite generator host machine :Including electrolytic cell , electrolysis power , intelligent control center PLC , the control element, man-machine interface , PC communication module, the operator panel, the host stand, electric valves, electrical power distribution system





    Sodium hypochlorite solution storage tank :including hydrogen storage tank , exhaust equipment





    Automatic dosing and on-line monitoring system: including the inverter , corrosion metering dosing pump , online residual chlorine monitor , and the closed-loop control of chlorine





    Online instrument series : Production water pressure monitoring , dilute brine online salinity monitoring , temperature controller , flammable gas monitoring sensor , these monitoring instruments are all included alarm signal output





    Advantage of on-site sodium hypochlorite generator

    Multi Function Electrolysis Salt Water Sodium Hypochlorite Generator Machine 20 KG            Multi Function Electrolysis Salt Water Sodium Hypochlorite Generator Machine 20 KG







    CNJS Technology  Material:





    Other :





     Full titanium 2mm base, iridium,   ruthenium oxide nano-coating, the sub-25 coating thickness of 20 microns , coating adhesion, long service life.



    Electrode thickness is only 1.0 mm,common ruthenium iridium thickness thin, easy to scaling easy to short circuit, the above is scaling  electrode  after burn.











    Multi Function Electrolysis Salt Water Sodium Hypochlorite Generator Machine 20 KG
