    Product Details:

    Place of Origin: CHINA
    Brand Name: CNJS
    Certification: ISO9001
    Model Number: CNJS-Y-2000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: NEGOTIATION
    Packaging Details: wooden case
    Delivery Time: 20-45 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 20 SETS PER MONTH
    Detailed Product Description
    Available Chlorine: 0.8 % Power Input: 380V, 50Hz
    Inlet Water Temperature: 5-27鈩 Inlet Water Pressure: 0.2-0.4Mpa
    Electrolytic Liquid: 2.5~3% Weak Brine Salt Consumption: 3.5kg/kg Cl2
    Water Consumption: 125L/kg Cl2

    Onsite Sodium Hypochlorite Generation Sodium Hypochlorite Water Treatment 2000 g / h

    Principle:

        CNJS - Y series NaClO generator is a new type of NaClO solution for field production equipment , suitable for all kinds of needs NaClO disinfected venues. Its working principle is:



     the main role of sodium hypochlorite disinfection is through its form hypochlorous acid hydrolysis, hypochlorous acid further break down to form new ecological oxygen [O] , new ecological oxygen strong oxidizing substances such as bacteria and virus on the protein denaturation, which kill pathogenic microbes .





    Second, hypochlorous acid in the process of sterilizatio n, kill the virus, not only can be applied to the cell, the virus shell, and for small hypochlorous acid molecules , without charge, also can penetrate the bacteria (virus) in the body, and bacteria (virus) protein , nucleic acid and enzyme oxidizing reaction of organic polymer, so as to kill the pathogenic microorganisms .






        Again , hypochlorite produced chlorine ion can significantly change the bacteria and virus, the osmotic pressure of the body, make the loss of activity and cell death





    Electrode reaction:
    anode:2Cl--2e→Cl2
    cathode:2H++2e→H2
    Solution:2NaOH+Cl2→NaCl+NaClO+H2O


    Technical parameters:


    Type

    Power(V/Hz)

    concentration of liquid(mg/l)

    available chlorine (Kg/h)

    Flow (m3/h)

    Salt consumption (kg/d)

    Water consumption (m3/d)

    Power consumption   (kw)

    Size(m)      (l×w×h)

    CNJS-Y-2000

    380V/50Hz

    7-9

    2

    0.25

    168

    6

    8

    900*700*1780



    The generator main technical indicators :






    Environment temperature:


     -10 鈩 锝+50鈩冿紱
    The electrolyte flow:


    200L/hr(Single host)锛



    The electrolyte temperature rise:



    <5 鈩 锛


    Producing chlorine :



     2000g/hr(Single host )锛


    Work flow chart :
    Onsite Sodium Hypochlorite Generation Sodium Hypochlorite Water Treatment 2000 g / h

    12,000 tons / day water plant sodium hypochlorite and chlorine dioxide generator comparative analysis of economic indicators
    (Year Water:12,000 tons/D×365=4.38 million tons)
    In year at amortized cost 4.38 million tons of water and the dosing amount of chlorine 2.0ppm (2.0 kg / tons) calculations.
    NoitemChlorine dioxide generatorSodium hypochlorite generator
    Overall costs(RMB)Amortization tons of water costsRemarkOverall costs(RMB)Amortization  tons of water costs(RMB)Remark
    1Equipment cost60000.000.002745-year service life130000.000.00237Equipment life of 15 years counted to be replaced every 7.5 years once electrode, electrode replacement costs at 20% of the overall cost of calculated.
    2Chlorine production costs5.600.01120HCl + chlorite + 1KG equipment for 1KW power consumption5.600.01120Salt + electricity consumption
    3Safety Evaluation fee5000.000.001100.000.00000No toxic substances, no high voltage, no high pressure vessel
    4Contingency plans expert
     assessment fee
    8333.330.001830.000.00000No special industry contingency plans
    5Air respirator annual cost1000.000.000220.000.00000
    No configuration required
    6Gas masks years updated1000.000.000220.000.00000No configuration required
    7Approval raw material costs2000.000.000440.000.00000Without approval
    8
    Total tons of water disinfection costs
    0.017740.01357
    9Expenditure years disinfection costs 77695.996859456.00
    10Annual savings of disinfection costs18240.00
    11Payback time (years3.84

    Product system:

    Brine preparation part: Including water softener, dissolving tank, salt feeder, mixing system etc .

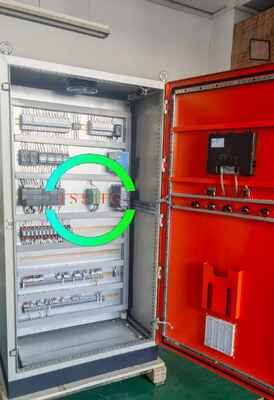

    Generation Part: Including Generator,Heated Exchange (options),Siemens touch screen ,Control Cabinet , etc.




    Storage Tank Part : Including NaClO tank , blower fan , Level gauge , Hydrogen gas detector , etc

    Delivery Part: dosing Pump, flow meter, residual chlorine detector, etc

    Onsite Sodium Hypochlorite Generation Sodium Hypochlorite Water Treatment 2000 g / h
    Advantage of on-site sodium hypochlorite generator


    SAFETY:



    Material safety: Salt, Water and Electricity as raw materials, no need for transportation of dangerous chemicals;
    Process safety: No risk of chlorine leakage and reactor explosion, safety for operator;
    Product safety: Product-0.8% NaCIO solution, has the advantage of stable and safety, cost effective in operation and no attenuation in storage.




    ENERGY-SAVING:


    Make use of electricity in the off-peak period to generate the NaCIO solution.

    ENVIRONMENTAL PROTECTION:

    Avoid of usage, transportation of dangerous chemical material.
    High current efficiency ,few by-product, safe H2 ventilation.
