4 Kg/H Energy Saving NaCIO Sodium Hypochlorite Generation System For Water Plant

4 Kg/H Energy Saving NaCIO Sodium Hypochlorite Generation System For Water Plant

    • 4 Kg/H Energy Saving NaCIO Sodium Hypochlorite Generation System For Water Plant
    • 4 Kg/H Energy Saving NaCIO Sodium Hypochlorite Generation System For Water Plant
  • 4 Kg/H Energy Saving NaCIO Sodium Hypochlorite Generation System For Water Plant

    Product Details:

    Place of Origin: CHINA
    Brand Name: CNJS
    Certification: ISO9001
    Model Number: CNJS-L-4000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: NEGOTIATION
    Packaging Details: wooden case
    Delivery Time: 20-45 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 20 sets per month
    Detailed Product Description
    Available Chlorine: 0.8% Power Input: 380V, 50Hz
    Inlet Water Temperature: 5-27鈩 Inlet Water Pressure: 0.2-0.4Mpa
    Electrolytic Liquid: 2.5~3% Weak Brine

    4 kg/h Energy Saving NaCIO Sodium Hypochlorite Generator For Water Plant





    Technical parameters:



    Type

    Power

    (V/Hz)

    concentration of liquid(mg/l)

    available chlorine (Kg/h)

    Flow (m3/h)

    Salt consumption (kg/d)

    Water consumption (m3/d)

    Power consumption   (kw)

    Size(m)      (l×w×h)

    CNJS-L4000

    380V/50Hz

    7-9

    4

    0.375

    252

    9

    17.5

    1200*860*

    1950



    > Inlet water temperature : -10 鈩 锝+50鈩冿紱     > Inlet water pressure : 0.2-0.4Mpa锛

    > Salt consumption: 3.5kg/kg Cl2 ;                        > Water consumption : 125L/kg Cl2

    > electrolyte temperature rise :<5 鈩 锛

    > Rated current: Determined according to the selected product model;



    Work flow chart :

    4 Kg/H Energy Saving NaCIO Sodium Hypochlorite Generation System For Water Plant

    Automatic sodium hypochlorite generator system fully automatic production, contains the system



    A,Automatic dissolving salt tank :Including salt tank , liquid level control , dissolving salt pump , electric valves , piping and other components which could automatic transmission salt , dissolving salt , saturated brine

    B,Saturated brine filter :Including stainless steel two precision filter ,primary filtering accuracy 50um, secondary filtration precision 5um, use PP filter , the filter can be easily replaced, ensure clean brine ;

    C,Dilute brine tank :The saturated brine and production water has been diluted with 2.5 % weak brine water , for the power solutions

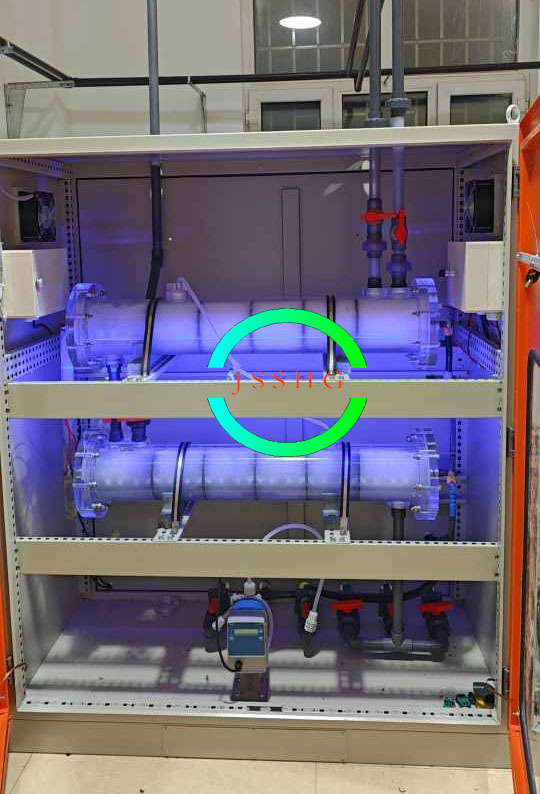

    D,Sodium hypochlorite generator host machine :Including electrolytic cell , electrolysis power , intelligent control center PLC , the control element, man-machine interface , PC communication module, the operator panel, the host stand, electric valves, electrical power distribution system

    E,Sodium hypochlorite solution storage tank :including hydrogen storage tank , exhaust equipment

    F,Automatic dosing and on-line monitoring system: including the inverter , corrosion metering dosing pump , online residual chlorine monitor , and the closed-loop control of chlorine

    G,Online instrument series : Production water pressure monitoring , dilute brine online salinity monitoring , temperature controller , flammable gas monitoring sensor , these monitoring instruments are all included alarm signal output



    Advantage of on-site sodium hypochlorite generator

    SAFETY:

    Material safety: Salt, Water and Electricity as raw materials, no need for transportation of dangerous chemicals;

    Process safety: No risk of chlorine leakage and reactor explosion, safety for operator;

    Product safety: Product-0.8% NaCIO solution, has the advantage of stable and safety, cost effective in operation and no attenuation in storage.

    ENERGY-SAVING:

    Make use of electricity in the off-peak period to generate the NaCIO solution.

    ENVIRONMENTAL PROTECTION:

    Avoid of usage, transportation of dangerous chemical material.

    High current efficiency ,few by-product, safe H2 ventilation.

    ECONOMY:

    JIASHANG equipment can largely reduce the operation cost compared to the bulk hypochlorite
