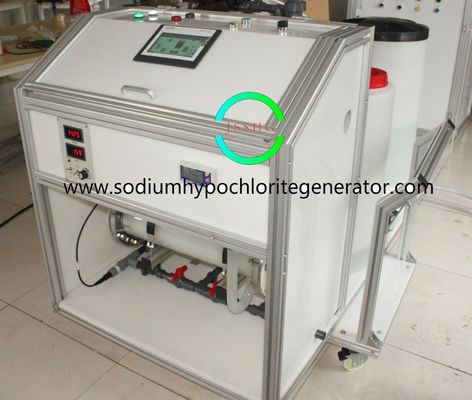

Chlorine In Swimming Pool Disinfection Systems , 500g On Site Sodium Hypochlorite Generation

Chlorine In Swimming Pool Disinfection Systems , 500g On Site Sodium Hypochlorite Generation

    • Chlorine In Swimming Pool Disinfection Systems , 500g On Site Sodium Hypochlorite Generation
    • Chlorine In Swimming Pool Disinfection Systems , 500g On Site Sodium Hypochlorite Generation
    • Chlorine In Swimming Pool Disinfection Systems , 500g On Site Sodium Hypochlorite Generation
  • Chlorine In Swimming Pool Disinfection Systems , 500g On Site Sodium Hypochlorite Generation

    Product Details:

    Place of Origin: CHINA
    Brand Name: CNJS
    Certification: ISO9001
    Model Number: CNJS-R-500

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: NEGOTIATION
    Packaging Details: wooden case
    Delivery Time: 7-15 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100 SETS /month
    Detailed Product Description
    Input Power: 220V(380V), 50Hz(60Hz) Inlet Water Temperature: 5-27鈩
    Inlet Water Pressure: 0.2-0.4Mpa Chlorine Capacity: 500 G / H
    Electrolytic Liquid: 2.5~3% Weak Brine AC Power Consumption: 4.0~4.5kw AC /kg /Cl2
    Conductivity Meter: 46-50ms/cm

    100g Chlorine Low Power Consumption Sodium Hypochlorite Production





    Product introduce:



    Main reaction process: NaCL+ H2O = NaCLO + H2↑

    Electrolysis of brine type sodium hypochlorite generator is an electro chemical reaction process, the only raw material are salt and water, no other additional ingredients. The design of generator system has the character of energy saving, cost saving, high reliability, long service life, simple operation etc...







    Work flow chart :

    Chlorine In Swimming Pool Disinfection Systems , 500g On Site Sodium Hypochlorite Generation



    Product system :

    Inlet water part :

    Mainly includes the water pressure gauge , dissolving salt pump , filter , salt tank , and related piping and valves .





    Generation system :

                         Mainly includes the water pressure gauge , electrolytic cell , etc





    Storage and dosing system

             Mainly includes the dosing pumps , storage tanks , etc.





    Why choose on CNJS Technology :

    Safety

    Totally enclosed alumina framework , reduce the effect of environment on the equipment.

            All size of the equipment are equipped with strong fan , to ensure the safety during the operation of the      system.

            Industrial salt or refined salt all can suit for the equipment , so that in the absence of refined salt regional can be security work.

    Energy-saving

    Using high frequency power switch , silicon ballast power saving 20% electricity than any other manufacturer.

    All equipment intelligent makes each part  more accurate.

    Environmental protection

    All equipment material is wading level standard, real national wading documents.

    All equipment product will not cause secondary pollution to environment.

    Efficient

    Good disinfection effect

    Truly unattended equipment, the efficiency is greatly increased
